Orb Pilot Batch Reactor

Batch Reactor Orb Pilot:

The Batch Reactor Orb Pilot is the most flexible and versatile batch reactor system as it can be built and customised to match your exact needs. It has user-friendly features for quick vessel changes, easy height adjustments and self-adjusting spring-loaded base frame. This is a high-performance floor standing jacketed batch reactor system that will help scale up batch processes. The system can be easily configured for your exact requirements in the lab along with offering a wide range of accessories and stirring options. It is robust and durable for years of continuous batch processing.

Key Features of the Orb Pilot:

• Wide range of vessel sizes in a single system
• Quick vessel changes: oil drain mechanism and pre-defined clamp positions
• Self-adjusting frame
• Wide temperature range: -40°C to + 235°C
• Rapid change baffles
• Detachable bottom outlet valve: for easy cleaning and maintenance
• Large range of accessories and add-ons

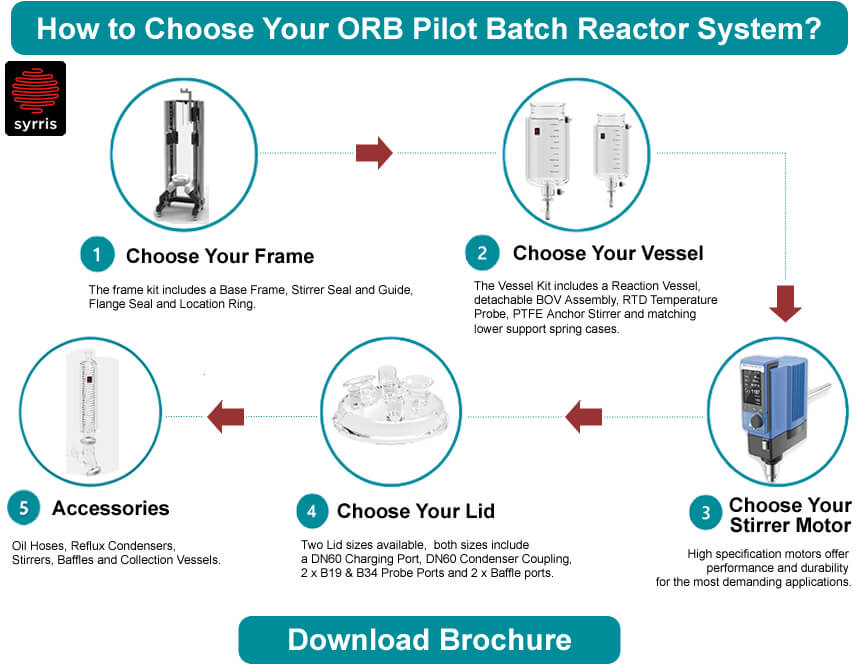

Multiple Setups in One:

Regardless of what you require, a 10 to 50 L vessel jacketed or 10 to 30 L vacuum jacketed, they can all be used on the one frame with the Orb Pilot. The additional accessories can be placed alongside for supporting pumps, collection vessels or reflux assemblies as well as many other configurations.

Quick Vessel Change:

Often in typical batch reactor systems, changing the vessels can take a few days and that time can be expensive. The Orb Pilot saves you time and money so that you can focus on your chemistry reactions rather than setting up your system. When the Orb Pilot is purchased, it comes with a tool-free clamp and has a spring-loaded base and quickly removable motor to enable vessel changes in under an hour.

Superior Mixing:

The Orb Pilot comes with an extensive range of stirrer options and easily removable baffles. The removable baffles improve mixing as well as being quickly removable and cleaned via the lid ports. These are available in both high and low shear mixing profiles.

Efficient and Powerful Stirring:

The Batch Reactor Orb Pilot is compatible with all major stirrer manufacturers products without the need to change mounting hardware. There is the option to choose from a selection of stirrer motors offering up to 500 rpm and 400 ncm continuous torque.

Orb Pilot is compatible with all major stirrer manufactures’ products without the need to change mounting hardware. Choose from a selection of stirrer motors offering up to 500 rpm and 400 Ncm continuous torque.

Safer for Glassware:

The Orb Pilot has a force-limited clamp that means there is no damage to the vessels or lids. This eliminates the need for expensive equipment replacements. The user can tighten the clamp within minutes so there is no risk to the glassware. It also allows for rapid stirrer or vessel changes.

Easy Automation Upgrade:

The Orb Pilot can be easily upgraded with software to allow control of Stirrers, Circulators, Dosing Pumps and other ancillary equipment.
